3 Wire 4 Wire Dryer Cord

You bought a new dryer, or moved to a new home. The cord on the dryer does not fit the wall outlet. Now you are staring at a 3 wire 4 wire dryer cord problem. This guide explains which cord you need and how to connect it safely.

First, the most important rule. Dryers run on 240 volts. That is double the voltage of a normal outlet. It can shock or kill you. Turn off the breaker before you touch anything. If you feel unsure at any point, call an electrician.

3 Wire 4 Wire Dryer Cord: What Is the Difference?

A 3 wire cord has three prongs. Two carry 120 volts each. The third wire does double duty as both neutral and ground. Older homes built before the mid-1990s usually have 3 wire outlets.

A 4 wire cord has four prongs. Two carry 120 volts each. The third is neutral. The fourth is a dedicated ground wire. This is the current standard. New homes and remodeled laundry rooms have 4 wire outlets.

The 4 wire setup is safer. Ground and neutral stay on separate paths. On a 3 wire setup, they share one wire. Both work, but code now requires 4 wire for new installations.

Which Cord Does Your Dryer Need?

Match the cord to your wall outlet, not to what you prefer. Look at the outlet.

A 3 wire outlet has three slots in an L shape pattern. A 4 wire outlet has four slots. Count them. That tells you which cord to buy.

Most dryers ship without a cord. You buy the cord separately. Hardware stores sell 30 amp dryer cords in both types. Make sure the cord is rated 30 amps. A range cord looks similar but is rated 50 amps. Do not mix them up.

If your outlet is damaged, cracked, or scorched, stop. Do not plug anything into it. Call an electrician to replace the outlet. A bad outlet can melt even a correctly wired cord.

What You Need Before You Start

Gather these items first. You will need a 30 amp dryer cord that matches your outlet. You need a screwdriver, usually a flat head and a Phillips. You need a nut driver for the terminal block screws on some models.

You also need the dryer manual. It shows the exact terminal block layout for your model. If you lost the paper manual, find it online using the model number. Never guess at the wiring order.

Turn off the breaker that feeds the dryer outlet. It is usually a double breaker marked 30 amps. Test that power is off by trying to start the dryer. If the dryer still has power, you flipped the wrong breaker. Find the right one.

How to Wire a 3 Wire Dryer Cord

Open the small cover plate on the back of the dryer. Behind it you will see the terminal block. It has three screws in a row. The middle screw is the neutral terminal.

On a 3 wire cord, connect the center wire to the center terminal. Connect the two outer wires to the two outer terminals. The outer wires are the hot wires. It does not matter which hot wire goes left or right. They are identical.

Look for a metal strap or a green wire connecting the center terminal to the dryer frame. On a 3 wire setup, this strap stays in place. It bonds the neutral to the frame. That is how 3 wire cords provide a ground path.

Tighten each screw firmly. Tug each wire to make sure it does not slip. Install the strain relief clamp where the cord enters the dryer. The strain relief grips the cord so a tug cannot pull wires loose. Replace the cover plate.

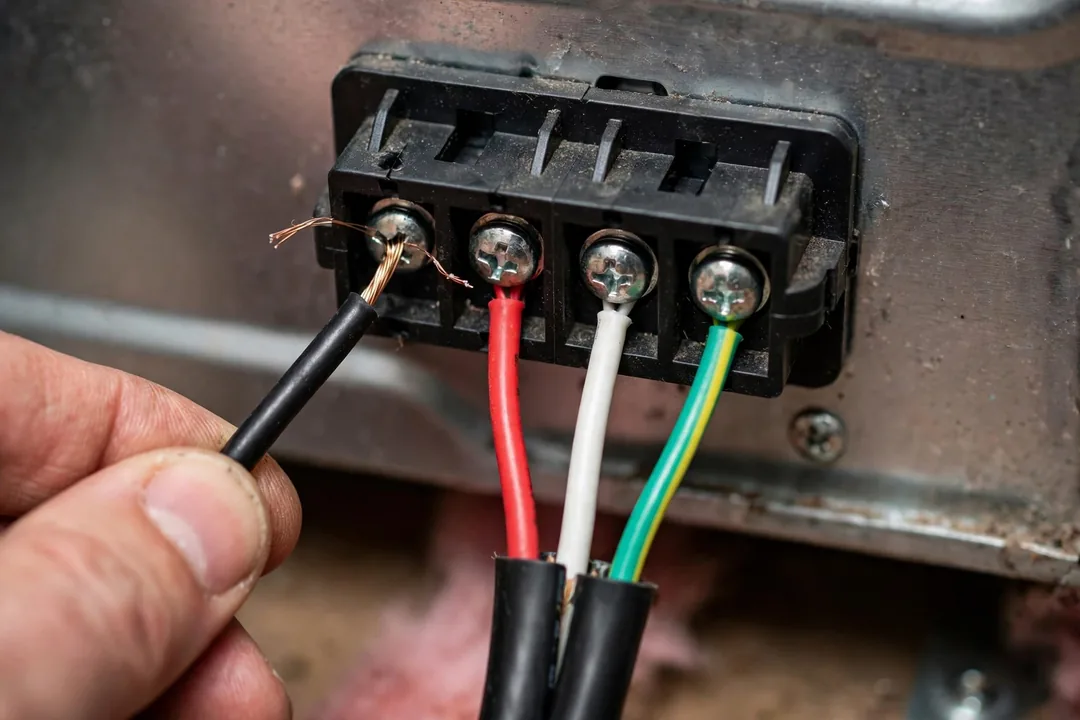

How to Wire a 4 Wire Dryer Cord

The process is similar, with one key difference. The ground wire gets its own terminal, and the bonding strap comes off.

Open the cover plate and find the terminal block. You will see three screws in a row, plus a separate green ground screw on the frame nearby.

Connect the white wire to the center terminal. This is neutral. Connect the red and black wires to the two outer terminals. These are the hot wires. Either one can go left or right.

Connect the green wire to the green ground screw on the dryer frame. Tighten it firmly.

Now remove or disconnect the bonding strap between the center terminal and the frame. On most dryers, it is a flat metal bar. On some, it is a green wire. Your manual shows exactly what to move. This step matters. With a 4 wire cord, ground and neutral must stay separate. Leaving the strap connected defeats the safety of the 4 wire system.

Install the strain relief clamp. Replace the cover plate. Turn the breaker back on and test the dryer.

Common Wiring Mistakes to Avoid

Never cut off a prong to make a cord fit. Never file down an outlet. If the cord and outlet do not match, buy the right cord. Adapters exist, but replacing the cord is cheaper and safer.

Do not skip the strain relief. Without it, the cord can pull loose over time. Loose wires arc. Arcing melts the terminal block. This is one of the most common causes of dryer outlet fires.

Do not leave the bonding strap connected on a 4 wire install. This is the most common mistake. Double check it before you close the cover.

Do not use a cord with cracked insulation or bent prongs. A damaged cord is not worth saving. Buy a new one.

When to Call an Electrician Instead

Some situations go beyond a simple cord swap. Call an electrician if the wall outlet is burned, loose, or cracked. Call one if the breaker trips every time the dryer runs. Call one if you smell burning near the outlet or the panel.

Also call an electrician if your home still has an old fuse box. Call one if the dryer circuit has no dedicated breaker. Our dryer repair hub covers other dryer electrical problems. Our guide on how to fix a dryer walks through heating failures. Some of those trace back to power issues. A dryer that runs but never heats may be getting only half its voltage. Our dryer not heating guide explains this in detail. Blocked vents can also make a dryer struggle. Check our dryer vent cleaning guide too.

If the terminal block inside the dryer is melted or the screws are stripped, stop and call for service. A damaged terminal block needs professional repair before the dryer is safe to use.

After the Cord Is Installed

Run the dryer on a heat cycle for 10 minutes. Then turn off the breaker and feel the outlet and cord. They should be cool or barely warm. If anything feels hot, turn off the breaker and call an electrician. Heat means a loose connection.

Check the screws once more after the first week of use. Copper settles under pressure. A screw that was tight can loosen slightly. A quick recheck prevents problems later.

Keep the manual in a drawer near the laundry room. If you move again, you may need to swap the cord type. Having the manual handy makes the next swap take 15 minutes.
